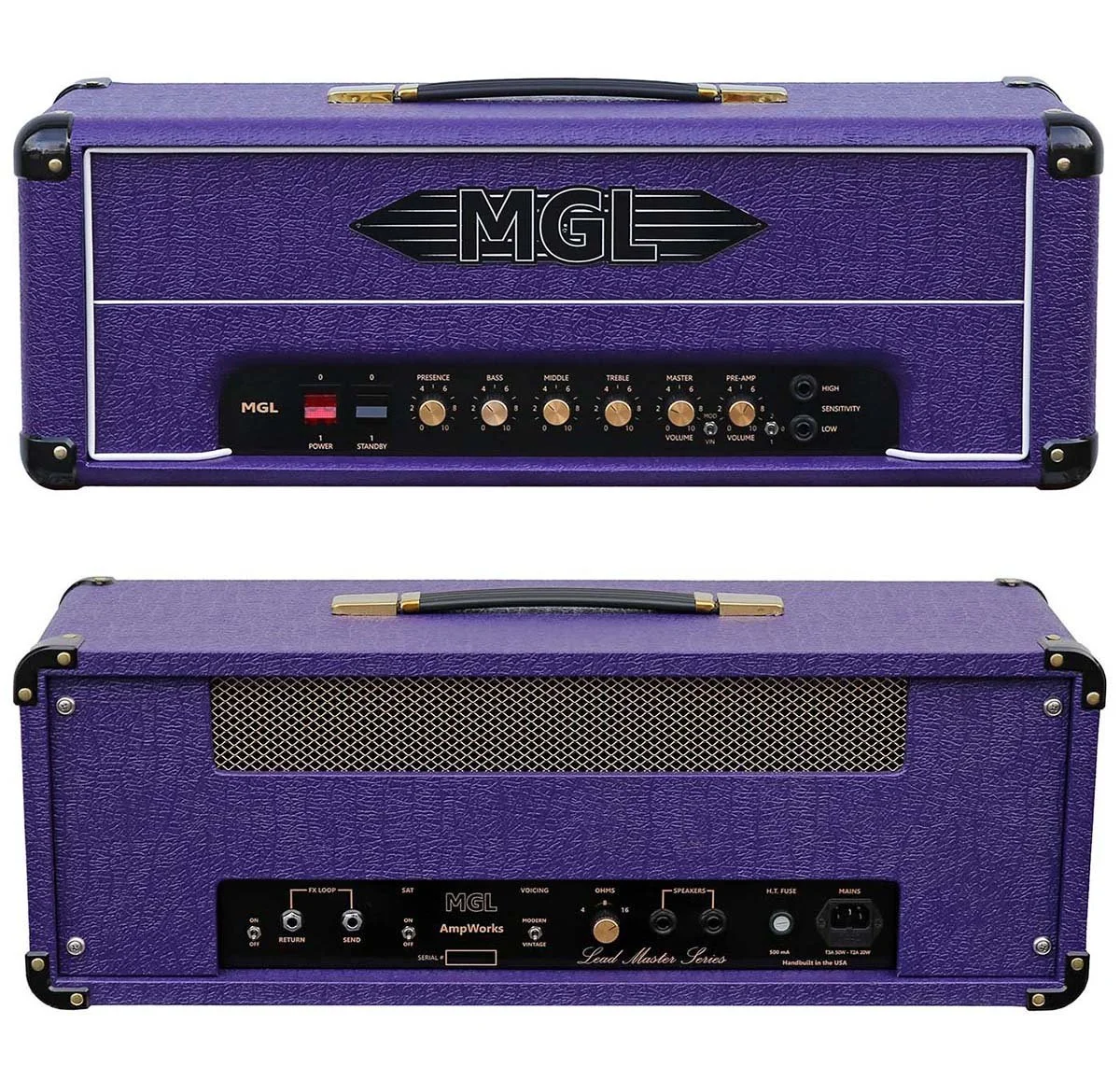

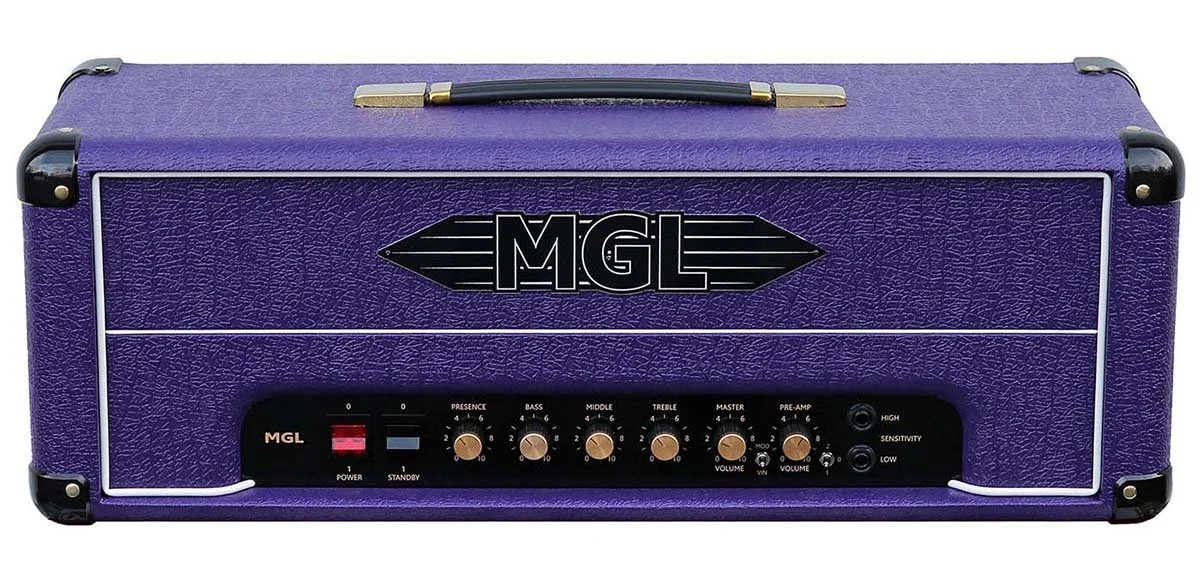

NEW MGL AmpWorks Lead Master Series Single Channel "Purple Circuit" 50w Amp
NEW MGL AmpWorks Lead Master Series Single Channel “Purple Circuit” 50w amp head using our new chassis that pays tribute to the classis 2204. The “Purple Circuit” is our popular hot rodded 2204 based amp that we’ve been building for 6 years. A versatile 50w single channel master volume amp that covers many tones, from ‘70’s classic rock to ‘80’s rock & metal. The hybrid Purple Circuit combines tones from “Plexi”, “Metal Panel” & “JCM” era amps that we all love. From the smooth and sweet distorted tones of a decked Plexi to the attitude & aggressiveness of JMP - JCM. Very reactive and touch sensitive to your hands and cleans up well by just rolling back your guitar volume. Stock 2204 high & low sensitivity input jacks. This new version has some nice added features. Front panel: The first mini switch to the right of the Master volume is for Gain Level, in the down (VIN) position you can get close to the gain of a stock 2204, and in the up (MOD) position you get the added gain of the Purple Circuit, 2nd mini switch to the right is a 3-way bright switch, down is the stock value bright cap, in the middle there is no bright cap and with the switch up it’s a value at about half way. Back panel includes a “Zero Loss” effects loop w/ true bypass switch, 2nd switch in the up position will engage a Jose style diode clipping Saturation circuit and last switch to the right is the Voicing switch that we use on all of our amps, in the Vintage position you get a warmer, sweeter and more compressed tone and in the modern position you get a tighter, brighter & more aggressive tone. These amps come stock in a custom Swanson Cabinets 26” late ‘70’s JMP style head cab as seen in the pictures, 26” or 24” Plexi style head cab is also an option at no up-charge, and as always we offer many tolex colors available at no up-charge (unlike the big companies that get $200.00 just for a custom color!!) These amps use a lower voltage power transformer like the late ‘70’s thru ‘81 Marshall 2204’s which makes for a warmer, fatter and more woody tone. We can also use our higher voltage 100w power transformer for a tighter, faster and more aggressive tone to match the higher voltage change that Marshall made in 1982.
BUILD SPECS:
Custom.090" aluminum chassis w/ welded corners, gloss black powder coating and screened with metallic gold ink for the text
Dagnall - MGL spec lower voltage power transformer, higher voltage Heyboer power transformer is a $25.00 up-charge
Heyboer - MGL spec paper layer wound Plexi 784-139 output transformer & filter choke
SoZo tone caps used throughout the circuit
Belton power tube sockets
Belton preamp tube sockets
18 AWG mil spec Teflon insulated wire
1 watt carbon film resistors
Real UK Cliff jacks
Brass shaft CTS pots
ARS filter caps
Metropoulos “Zero Loss” effects loop w/ true bypass switch
3 NOS square foil getter Chinese 12AX7 preamp tubes
Matched pair of EH EL34 power tubes, NOS RFT Siemens EL34 power tubes at a $150.00 up-charge
Swanson Cabinets large box 29" cab in either Plexi or late '70's JMP style w/ plastic corners available at a $100.00 up-charge.
Customer Amp Build Info
By choice, we keep our amp production numbers low, so each customer gets a custom build. We spend as much time needed in detailed phone conversations and or emails to get you into the right model amp and the choice of aesthetic looks & appointments we offer. By building a lower number of amps, each build gets more detailed attention and we have the luxury of incorporating better components, including NOS parts & tubes in each build. The foundation, tonally for all our amp models is authentic Marshall voicings. And nothing has more Marshall DNA than real NOS mustard caps! All amps other than the 2204 model include 5-10 real mustard caps throughout the circuit. Larger production amp builders really can’t include these build appointments due to the difficulty locating and buying larger quantities of NOS parts. I’m constantly searching the world for NOS parts & tubes.
3% Discount for Check or Wire
Inquire About This Item or Call 603-868-9805
